Lichen

Ultrasonic Cleaner

MUC-E Series

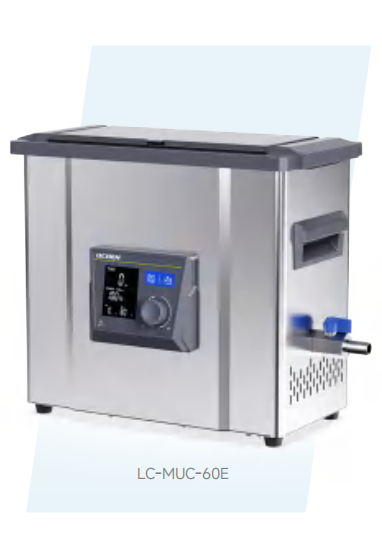

Ultrasonic Cleaner MUC-E Series

Product Overview

The MUC-E Series Ultrasonic Cleaner delivers precision cleaning for high-end labs. Its composite ultrasonic technology and intelligent control system optimize cavitation, ensuring powerful, focused energy to remove micron-scale contaminants from complex geometries.
Features
  • HD LCD Display: 3-inch backlit LCD screen displays real-time operation information for clear status monitoring.
  • 304 Stainless Steel Tank: Seamlessly stamped tank (thickness >1.0 mm) prevents leakage and resists acid/alkali corrosion (pH 3-12), maintaining long-term structural integrity.
  • Advanced Circuit Design: Imported chip technology enhances acoustic energy conversion, improving energy efficiency.
  • Stepless Ultrasonic Power Adjustment: Precise stepless power adjustment from 10% to 100% allows for tailored ultrasonic intensity.
  • NTC Sensor & PTC Heating: Enables uniform heating (RT-80° C) to accelerate extraction and dissolution experiments.
    •

    Product Parameters


    Model LC-MUC-45E LC-MUC-100E
    Power Supply AC220V/50Hz
    Power (W) 480W 760W
    Display Mode LCD display
    Ultrasonic Power 180W 360W
    Ultrasonic Frequency 40±2KHz
    Vibrators number 3 6
    Inner Tank Capacity 4.5L 10L
    Inner Tank Dimensions 300x150x100mm 300x240x150mm
    Timing Range 0～120min
    Temp. Range RT～80℃
    Heating Power 300W 400W
    Degassing Function Intermittent Operation: Max. Interval 30s
    Drain valve / ✓
    Net Weight (kg) 4.5kg 7.9kg
    Product Dimensions (mm) 344x209x250mm 346x300x303mm
