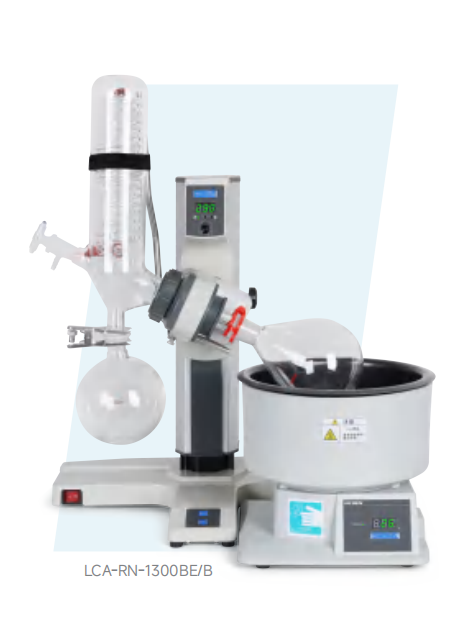

Rotary Evaporator RN Series

Product Overview

The RN Series Rotary Evaporators employ stepless speed regulation to maintain a consistent rotation of glass flasks, forming uniform material thin films on their inner walls. Coupled with an intelligent constant-temperature water bath for even heating, the system enables rapid solvent evaporation under vacuum. Vapors are efficiently condensed in a glass condenser and collected. Designed for vacuum applications, all wetted parts are made of heat-resistant borosilicate glass and PTFE, making these evaporators ideal for concentrating and purifying heat-sensitive biological samples.
Features
  • Fuse safety protection with automatic power-off for dry-burn prevention (Excludes Basic Series).
  • The water bath pot features an aluminum alloy + Teflon composite coating with fully enclosed heating.
  • The main frame is constructed from high-quality aluminum alloy for optimal structural integrity
  • Electronic stepless speed regulation (5–310 rpm) with digital RPM display for easy operation.
  • Vertical double-layer serpentine coil condenser ensures high recovery rates, with an additional feeding tube.
  • Valve-type feed tube with PTFE tubing connection enables seamless continuous feeding.
  • All glass components are made of high-borosilicate glass (GG-17) for high temperature and corrosion resistance.
  • Sealing system employs a dual combination of PTFE and imported fluoroelastomer to maintain high vacuum levels.
  • Digital display and intelligent temperature control for the water bath, with a PT100 sensor for rapid and accurate temperature transmission.
  • Manual weight-balanced lifting for the main unit, combining sliding lift and manual adjustment.
    • Model-Specific Features :(LCA-RN-1300B / LCA-RN-1300BE - Manual & Electric Lift Models)
  • LED screen for intuitive digital RPM display.
  • Brushless DC motor for high efficiency and long service life
  • Programmable forward/reverse rotation with timing function for optimized sample mixing.
  • Bi-directional condenser mounting (left/right adjustable) to accommodate diverse laboratory setups and user preference.
  • Reinforced glass shaft supports a 3L rotary flask, suitable for large-volume sample concentration.
  • Arc-shaped base design allows 360° placement of the main unit around the water bath, maximizing space utilization
  • Electric lifting for the main unit (only LCA-RN-1300BE) for safe and convenient operation.
    •

    Product Parameters


    Model LCA-RN-1100D LCA-RN-1100B LCA-RN-1300B LCA-RN-1300BE
    Speed Range 20~280rpm 20~310rpm
    Power Supply AC220V 50Hz
    Output Power Main unit :25 W Water bath :1500W Main unit :100 W Water bath :1500W
    Temp. Range RT～ 99℃ RT～ 180℃
    Temp. Accuracy ±1℃ Water: ± 1℃ Oil: ± 2℃
    Evaporation Rate Max 25ml/min (Water)
    Water Bath Capacity 5 L 5.5L
    Water Bath Size 240×120
    Water Bath Material SUS304 SUS304+Teflon coating
    Max.Vacuum Degree 0.098MPa
    Lifting Function Manual Lifting
    Condenser Tube Vertical double-layer serpentine coil, 0.15m² cooling area
    Rotating Bottle Pear-shaped , 1L
    Recycling Bottle Round Bottom Flask 1L Spherical , 1L
    Rotary Shaft 15x162 (TS29/38)
    Vacuum Sealing Dual PTFE Sealing Ring
    Gas Inlet Diametert φ10mm
    Lifting Stroke 100mm (sliding) + 150mm (manual) 100mm (sliding) + 150mm (manual) 100mm (sliding) + 130mm (manual) 100mm(electric)+130mm(manual head extension)
    Product Dimensions (mm) 510x380x(750-900)MM 550x380x(630-880)MM 595x440x(650-880) mm 595x440x(650-880) mm
    Net Weight (kg) 13kg 14kg 17kg 17kg
