Lichen

Overhead Stirrer

OS Series

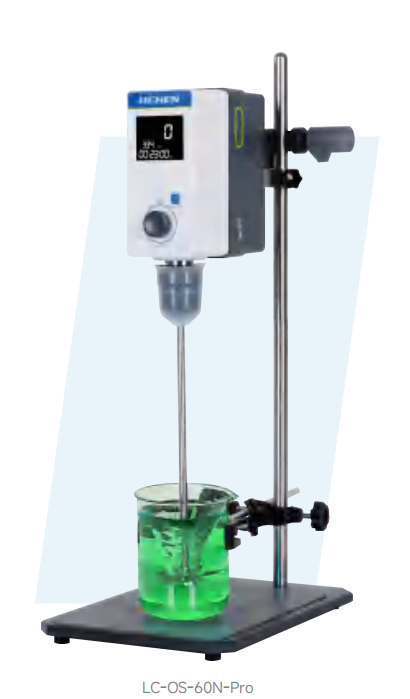

Overhead Stirrer OS Series

Product Overview

The OS Series Overhead Stirrers have novel design concepts and advanced manufacturing processes, delivering high torque at low speeds with stable, continuous operation and excellent concentricity. The overhead-penetrating stirring paddle allows easy sample container replacement. It suits mixing of low, medium and high viscosity liquids in laboratories.
Features
  • Stirring Paddle Access Port: Designed with a dedicated penetration hole for easy replacement of experimental samples or containers.Self-Locking Chuck: Enables quick and convenient operation with a secure locking function to prevent stirring rod loosening.
  • Brushless DC Motor: Guarantees long-term, stable operation with low noise, high torque, and easy maintenance.
  • Parameter Memory Function: Saves settings to streamline operational procedures.
  • Microprocessor Control: Maintains constant speed through an automatic regulation system.
  • Included Safety Accessories: Comes standard with a chuck protective sleeve, safety lanyard, and anti-slip pad for enhanced operational safety.
  • Integrated Safety Circuit: Provides motor protection, overload protection, and automatic fault shutdown with alarm function.
    •

    Product Parameters


    Model LCA-OS-40N LCA-OS-60N LCA-OS-40N Pro LCA-OS-60N Pro
    Power Supply AC220V 50Hz
    Power (W) 120W 170W 120W 170W
    Motor Type Brushless DC Motor
    Display Mode LCD display
    Timing Range / 1~99h59min
    Max. Stirring Capacity 20L 40L 20L 40L
    Max. Torque 40N·cm 60N·cm 40N·cm 60N·cm
    Max. Viscosity 15000MPa·s 50000MPa·s 15000MPa·s 50000MPa·s
    Speed Range 50~2000rpm
    Speed Control Accuracy ±1rpm
    Chuck Clamping Diameter 1~10mm
    Net Weight 10.4Kg
    Product Dimensions 320x220x600mm
