Lichen

Overhead Stirrer

OES Series

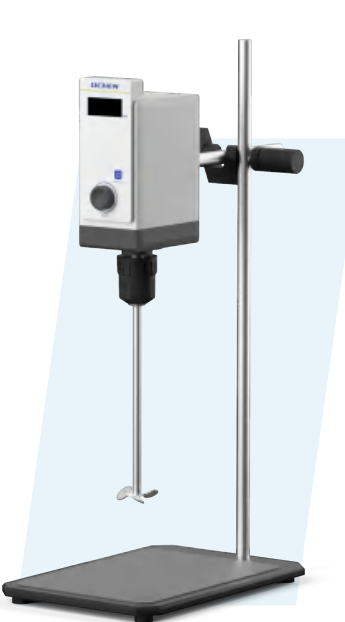

Overhead Stirrer OES Series

Product Overview

The OES Series Overhead Stirrer handles a wide range of liquid viscosities in the lab. Built with robust engineering plastic and aluminum alloy, it offers freely adjustable speed and time with an LCD display. The unit includes parameter memory and comprehensive safety protections for reliable operation.
Features
  • Advanced Thermal Management: High-conductivity metal cooling system (aerodynamic design, efficient dissipation, stable long-term operation).
  • Intuitive Touch Control: HD LCD screen with touch buttons offers a clear and responsive user interface.
  • Triple Protection System: Intelligent safeguards (overload/overcurrent/overtemperature) provide real-time monitoring and intervention for safety under extreme conditions.
  • Quiet DC Motor Operation: Brushless DC permanent magnet motor with precision drive control ensures smooth and low-noise performance.
  • Innovative Beaker Clamping: Flexible woven strap clamp securely holds and positions large containers, overcoming limitations of rigid fixtures.
    •

    Product Parameters


    Model LC-OES-60 LC-OES-60SH
    Power Supply AC100-220V 50/60Hz
    Power (W) 72W
    Display Mode LCD
    Speed Range 100～ 2000rpm
    Speed Control Accuracy ±10 rpm
    Timing Range / 1～ 99h59min59s
    Max. Viscosity 10000mPa·s
    Max. Stirring Capacity 20L
    Motor Type DC Permanent Magnet Motor
    Net Weight (kg) 7Kg
    Product Dimensions (mm) 315x200x600mm
