Lichen

Overhead Stirrer

OES-F Series

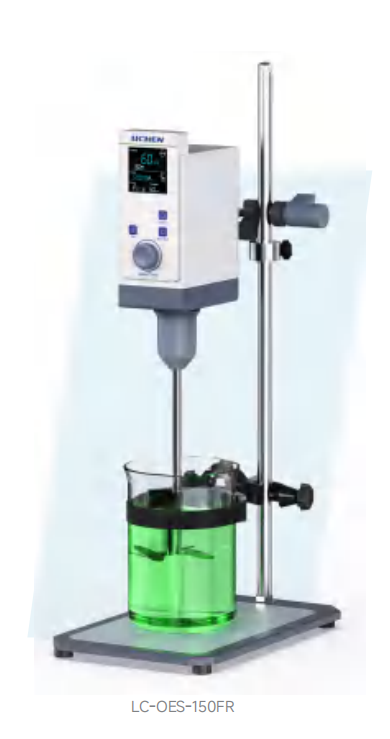

Overhead Stirrer OES-F Series

Product Overview

The OES Overhead Stirrer is designed for mixing and stirring low, medium, and high-viscosity liquids in laboratory settings. The main unit is constructed with high-quality engineering plastics, ensuring stable operation. Its output end incorporates a variable-speed torque amplification mechanism that multiplies output torque. The operating speed can be freely set according to experimental requirements, with real-time stirring speed displayed digitally for accurate data collection. The system features built-in soft start, automatic overload protection, and constant power compensation throughout operation.
Features
  • Triple Protection System: Intelligent safeguards (overload/overcurrent/overtemperature) provide real-time monitoring and intervention for safety under extreme conditions.
  • Smart Torque Monitoring - Dynamically tracks material viscosity changes during operation. (LC-OES-150FR, LC-OES-150FP)
  • Dual-Way Stirring System - Enables smooth forward and reverse rotation switching. (LC-OES-150FR, LC-OES-150FP)
  • Six-Stage Programming - Allows precise multi-parameter control for automated processes and repeatable results. (LC-OES-150FP)
  • Quiet DC Motor Operation: Brushless DC permanent magnet motor with precision drive control ensures smooth and low-noise performance.
  • Silicone-Protected Chuck - High-elasticity silicone cover offers chemical resistance and wear protection.
  • Innovative Beaker Clamping: Flexible woven strap clamp securely holds and positions large containers, overcoming limitations of rigid fixtures.

  • Product Parameters


    Model LC-OES-150FR
    Power Supply AC110-220V/50Hz
    Power (W) 150W
    Display Mode LCD
    Speed Range (rpm) 50 ~ 2000rpm
    Speed Control Accuracy ±10rpm
    Timing Range 1~ 99h59min59s
    Max. Viscosity 50000mPa·s
    Max. Stirring Capacity 60L
    Motor Type DC brushless motor
    Net Weight 7Kg
    Product Dimensions 315x200x600mm
