Lichen

Muffle Furnace

SX2 Series

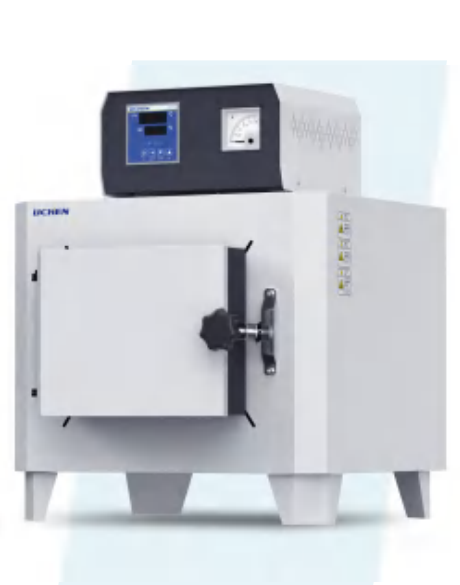

Muffle Furnace SX2 Series

Product Overview

The LC-SX2 Series Muffle Furnaces combine a robust steel shell and energy-efficient refractory insulation with precise temperature control. Their side-hinged door facilitates easy operation, making them ideal for element analysis, heat treatment, and various high-temperature applications in labs and industry.
Features
  • PID temperature control system with LED digital display enabling real-time and target-temperature monitoring.
  • Furnace chamber: Sintered refractory material (low thermal conductivity, good insulation).
  • Hinged door mechanism enabling smooth and effortless operation and detachable remote controller for flexible installation.
  • Facilitates adaptable positioning of both the controller and the furnace within the workspace.
  • Cold-rolled steel shell with electrostatic powder coating and fine matte finish for corrosion resistance.
  • Angular design with classic gray-white color scheme and clean lines.
    •

    Product Parameters


    Model SX2-4-10 SX2-8-10
    Power Supply (V/Hz) AC220/50 AC380/50
    Power (KW) 4 8
    Effective Volume 7.2 16
    Display Mode LED display
    Rated Temp. (℃) 1000
    Temp. Accuracy (℃) ±1
    Heating Element Resistance Wire Resistance Wire
    Chamber Dimensions (MM) 300x200x120 400x250x160
    Controller KSW-6-12 KSW-12-12
    Product Dimensions 635x495x510 780x560x600
    Net Weight (kg) 110 170
