Moisture Analyzer

DHS Series

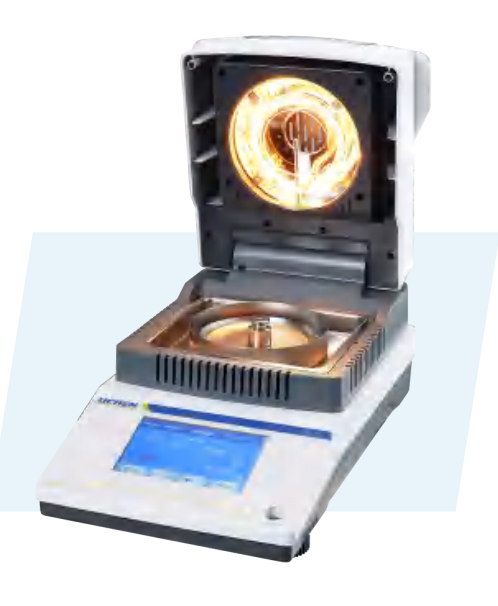

Moisture Analyzer DHS Series

Product Overview

The DHS Series Moisture Analyzers quickly determine moisture content using halogen heating and thermogravimetric technology. Equipped with a precision weighing sensor and halogen heater, the instrument dries samples efficiently through an optimized evaporation path while continuously displaying real-time moisture loss (%). The final moisture content is locked and displayed once drying is complete.
Features
  • 5-inch smart touchscreen with real-time display of time, moisture loss curve, and temperature.
  • Auto-dry and timed-dry modes for diverse testing needs.
  • Alerts for insufficient sample quantity or short drying time to ensure measurement accuracy.
  • 15 test records storage with instant recall and print functionality
  • High-precision weighing sensor with a maximum capacity of 110g.
  • High-performance housing made of corrosion-resistant, heat-resistant, and flame-retardant materials.
    •

    Product Parameters


    Model LC-DHS-16A
    Power Supply 220V3A/50Hz±1Hz
    Power (W) 350W
    Display Mode 5-inch HD touch screen
    Moisture Measurement Range 0-100%
    Readability ±0.01%
    Max. Weight Capacity 50g
    Min. Weight Capacity 0.001g
    Weighing Accuracy ±0.002g
    Accuracy Class Class II
    Temperature Control Range 50-180℃
    Temp. Accuracy ±1℃
    Heating Time Setting 0-99min
    RS232 Interface ✓
    Heating Element High-efficiency halogen lamp
    Standard Calibration Weights 20,50g
    Pan Size Φ100mm
    Net Weight (kg) 4.5Kg
    Product Dimensions (mm) 360*223*176mm
