Lichen

Magnetic Stirrer

MSB Series

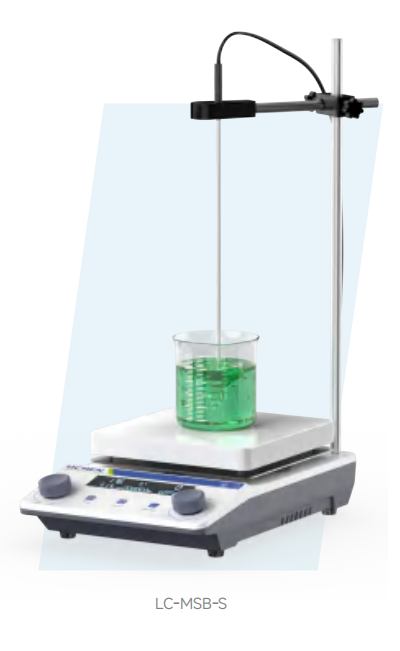

Magnetic Stirrer MSB Series

Product Overview

The MSB Series Magnetic Stirrers are laboratory instruments for liquid mixing, primarily designed for stirring or simultaneously heating low-viscosity liquids or solid-liquid mixtures.With the heating temperature control system, it can heat and control the sample temperature according to the specific experimental requirements, maintain the temperature conditions required by the experimental conditions, and ensure that the liquid mixing meets the experimental requirements.
Features
  • Strong Magnets: Ensures sufficient magnetic force to prevent jumping and enhance stirring performance.
  • One-Piece Die-Cast Aluminum Hotplate: Features ceramic coating for uniform temperature distribution, fast heating, and excellent corrosion, slip, and wear resistance.
  • Direct PT1000 Temperature Sensor Connection: Enables precise temperature control. (Available for LC-MSB-HD model only).
  • Forward/Reverse Rotation Function: Supports rotation in both directions with pause and soft start capabilities. (Available for LC-MSB-D and LC-MSB-HD models only).
  • Programmable Mode: Supports setting up to 6 program groups to meet the needs of different experimental phases. (Available for LC-MSB-D and LC-MSB-HD models only).
    •

    Product Parameters


    Model LC-MSB-S LC-MSB-H LC-MSB-D LC-MSB-HD
    Power Supply AC220V 50Hz
    Power (W) 10W 450W 24W 550W
    Display Mode / LCD
    Speed Range 200-1600rpm 100-1600rpm
    Speed Control Accuracy / ±10rpm
    Timing Range / 1-99h59min
    Temp. Range / Plate: ±3℃ Liquid: ±0.5℃
    Temp. Accuracy / RT~ 300℃ / RT~300℃
    Max. Stirring Capacity 5L
    Work Plate Material Tempered Glass Cast Aluminum + Ceramic Coating Tempered Glass Cast Aluminum +Ceramic Coating
    Working Dimensions 150x150mm
    Motor Type Brushless DC Motor
    Net Weight (kg) 1.4Kg 2.1Kg 1.4Kg 2.1Kg
    Product Dimensions (mm) 180x270x60mm 180x270x85mm 180x270x60mm 180x270x85mm
