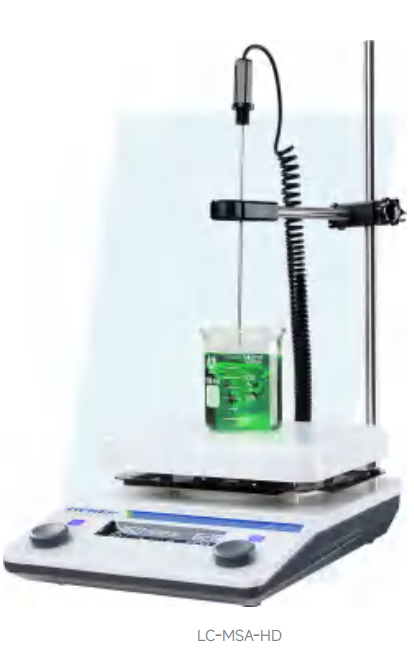

Name: MSA Series
Brand: Lichen

Product Overview

The MSA Series Magnetic Stirrers are laboratory instruments for liquid mixing, primarily designed for stirring or simultaneously heating low-viscosity liquids or solid-liquid mixtures.With the heating temperature control system, it can heat and control the sample temperature according to the specific experimental requirements, maintain the temperature conditions required by the experimental conditions, and ensure that the liquid mixing meets the experimental requirements.

Features

Strong Magnets: Ensures sufficient magnetic force to prevent jumping and enhance stirring performance.

LCD Display: Shows speed, time, or temperature with clear, intuitive readability.

Brushless DC Motor: Provides low noise, maintenance-free, and smooth operation

PID Control: Ensures precise temperature control and stable rotational speed.

PT1000 Sensor Connection: Direct connection for accurate temperature control. (Available for LC-MSA-HD model only).

Forward/Reverse Rotation: Allows rotation in both directions with pause and slow start. (Available for LC-MSA-D and LC-MSA-HD models only).

Residual Heat Warning: Alerts to prevent burns and ensure operator safety. (Available for LC-MSA-HD model only).

Over-Temperature Protection: Automatically stops heating when plate temperature exceeds 380°C for laboratory safety. (Available for LC-MSA-H and LC-MSA-HD models only).

Product Parameters

Model	LCA-MSA-D	LCA-MSA-H	LCA-MSA-HD
Power Supply	AC220V 50Hz
Power (W)	50W	950W	950W
Display Mode	LCD Display	/	LCD Display
Speed Range (rpm)	100-2000rpm
Speed Control Accuracy	±10rpm	/	±10rpm
Timing Range	1-99h59min	/	1-99h59min
Temp. Range	/	Plate：RT-350℃
Temp. Accuracy	/	/	Plate: ±3℃ Liquid：RT-100℃ ±0.5℃; ≥100℃, ±0.1℃
Max. Stirring Capacity	20L
Work Plate Material	Cast aluminum + ceramic corrosion-resistant coating
Working Dimensions	170x170mm
Motor Type	Brushless DC Motor
Net Weight	2.5Kg	3Kg
Product Dimensions	290x190x88mm	290x190x9mm
