Lichen

Low Temperature Thermostatic Bath

SDC Series

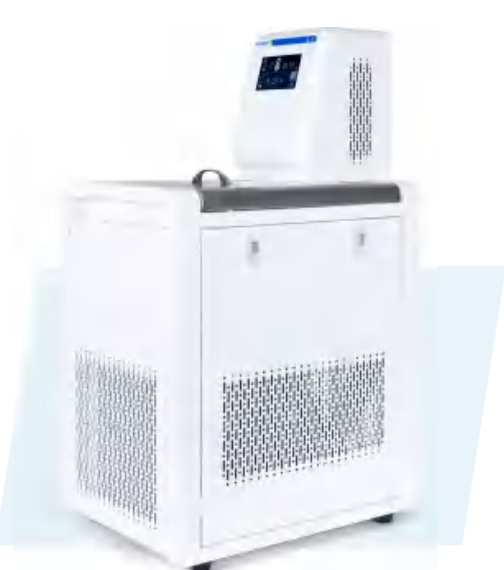

Low Temperature Thermostatic Bath SDC Series

Product Overview

This SDC Series Low Temperature Thermostatic Bath adopts the latest international refrigeration system, with stable and reliable performance. Equipped with internal and external circulation function: internalCycle can directly perform constant temperature testing or measurement on test samples or produced products in the tankTest, the external circulation function uses a circulation pump to maintain a constant temperature of the liquid medium in the tank, increasing the temperature inside the tankUniformity of temperature, reducing temperature fluctuations.
Features
  • 4.3-inch touch screen display, clear and concise work information.
  • Control part mold design, streamlined appearance design, beautiful and generous.
  • The door panel is detachable and does not require any disassembly tools, making it easy to clean dust.
  • The drainage valve is a built-in hidden type, simple and beautiful
  • Using 304 stainless steel platform and inner liner to prevent corrosion and rust
  • By using a non heat circulation pump, the problem of traditional water pumps affecting the temperature field of the tank due to their own heat generation has been optimized
  • High performance mixing and circulating motor, used for circulating liquids, with low noise, low heat generation, fully enclosed, and high lifespan
  • Temperature self-tuning function, PID precision temperature control system, the temperature will not fluctuate significantly when it reaches the set value.
    •

    Product Parameters


    Model LC-SDC-0506N LC-SDC-0510N LC-SDC-0515N LC-SDC-0520N LC-SDC-0530N LC-SDC-1006N LC-SDC-1010N LC-SDC-1015N LC-SDC-1020N LC-SDC-1030N LC-SDC-2006N LC-SDC-2010N LC-SDC-2015N LC-SDC-2020N LC-SDC-2030N
    Power Supply (v / Hz) AC220/50
    Power (W) 1200 1300 1800 1800 2500 1300 1300 1800 1800 2500 1400 1400 1800 1800 2500
    Display Mode TFT touch screen
    Temp. Range (℃ ) -5~100 -10~100 -15~100
    Temp. Fluctuation (℃ ) 0.05~0.1
    Volume (L) 6 10 15 20 30 6 10 15 20 30 6 10 15 20 30
    Pump head (M) 2 2 2.5 2.5 3 2 2 2.5 2.5 3 2 2 2.5 2.5 3
    Flow (L/min) 8 10 13 8 10 13
    Working dimensions (mm) 270x200x130 270x200x200 300x250x210 300x250x270 460x340x210 270x200x130 270x200x200 300x250x210 300x250x270 300x250x270 270x200x130 270x200x200 300x250x210 300x250x270 460x340x210
    Opening dimensions (mm) 180x140 180x140 235x160 235x160 310x280 180x140 180x140 235x160 235x160 310x280 180x140 180x140 235x160 235x160 310x280
    Net Weight (kg) 28 29 41 43 64 28 29 41 43 64 28 29 41 43 64
    Product Dimensions (mm) 440x300x750 440x300x750 520x380x830 520x380x830 665x490x990 440x300x750 440x300x750 520x380x830 520x380x830 665x490x990 440x300x750 440x300x750 520x380x830 520x380x830 665x490x990
