Lichen

Double-Door Drying Oven

DBH Series

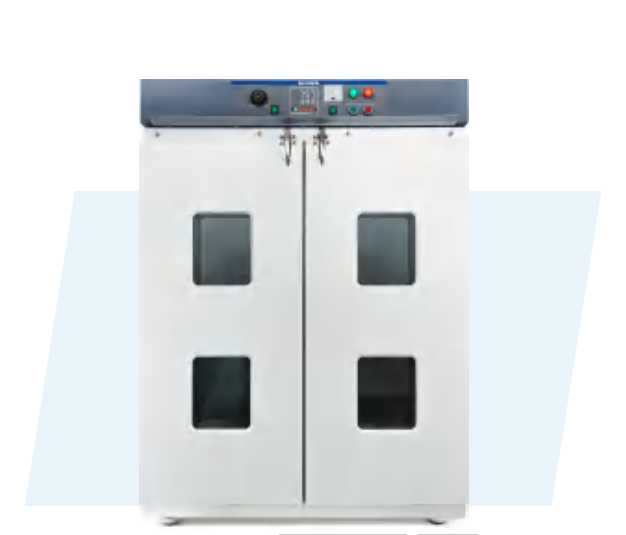

Drying Oven DBH Series

Product Overview

The LC-DBH Series Double-Door Drying Ovens combine innovative design, advanced temperature control, and robust construction for industrial drying, baking, wax melting, and heat treatment applications. Ideal for laboratories, pharmaceutical facilities, and manufacturing plants requiring high-capacity thermal processing with precision and reliability.
Features
  • Optimized Heating System: Dual-Fan Dual-Duct Air Circulation System ensures uniform temperature distribution.
  • Robust Exterior Construction: High-quality steel shell with electrostatic powder coating resists corrosion and aging.
  • Precision Temperature Control: PID temperature control technology with LED digital display shows real-time and target temperatures.
  • Smart Software Integration: Includes programmable timers (up to 9,999 minutes), over-temperature alarms, temperature deviation correction, and auto-tuning functions.
  • Dual Safety Protections: Standard leakage protector (excludes -2/-3 models) and independent temperature limiter ensure equipment and user safety.
  • Long-Lasting Sealing: High-temperature silicone gaskets and adjustable latch locks enhance airtightness to minimize heat loss.
    •

    Product Parameters


    Model LC-DBH-4S
    LC-DBH-4BS
    LC-DBH-4BE    		 LC-DBH-5S
    LC-DBH-5BS
    LC-DBH-5BE
    Power Supply 380V/50Hz
    Power (W) 6000W 9000W
    Effective Volume 640L 1200L
    Display Mode LED
    Temp. Range 50~300℃
    Controller Resolution ±0.1℃
    Timing Range 0~9999min
    Working Dimensions 800x800x1000mm 1000x1000x1200mm
    Standard Number of Shelves 2 2
    Bearing of Shelf 40Kg
    Max. Number of Shelves 10pcs 12pcs
    Net Weight (kg) 205Kg 270Kg
    Product Dimensions (mm) 1000x960x1460mm 1235x1200x1610mm
