Lichen

Drying Oven

101/202 Series

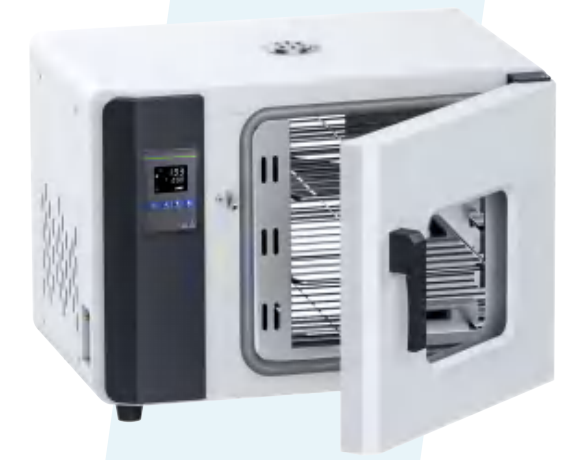

Drying Oven 101/202 Series

Product Overview

The LC-101/202 Series Drying Ovens feature precise temperature control systems, widely used in industries such as electromechanical, chemical, plastics, and light manufacturing, as well as in research institutions for baking, drying, curing, heat treatment, and other thermal processes for various products and samples.
Features
  • PID Temp Control: Stable/accurate control, built-in LCD for real-time monitoring, premium interface.
  • Smart Software Integration: Programmable timer (max 9,999 mins), overtemp alarm, temp deviation correction & auto-tuning.
  • Heating Safety (LC-101 only): Left tubes (upgraded insulation) anti-leakage/short; bottom no heat, safe.
  • High-Performance Fan: Corrosion-resistant, independent control, ≤ 50 dB (5cm front, full power).
  • Large Observation Window: Double-layered glass provides a clear view of internal processes without compromising thermal insulation.
  • Robust Exterior Construction: Cold-rolled steel shell with electrostatic powder coating resists corrosion and aging.
    •

    Product Parameters


    Model LC-101-00 LC-101-00B LC-101-0 LC-101-0B LC-101-1 LC-101-1B LC-101-2 LC-101-2B LC-101-3 LC-101-3B
    Power Supply AC220V 50Hz
    Power 600W 1000W 1500W 2000W 3000W
    Display Mode LCD display
    Temp. Range RT+5~300℃
    Temp. Accuracy ±1℃
    Temperature Uniformity ±2%
    Forced-Air Convection ✓
    Timing Range 9999min
    Working Dimensions 250x250x250mm 350x350x350mm 350x450x450mm 450x550x550mm 500x600x700mm
    Effective Volume 15.6L 42L 70L 136L 210L
    Standard Number of Shelves 2
    Bearing of Shelf 15Kg
    Max. Number of Shelves 4 6 8 10 12
    Net Weight (kg) 16Kg 26Kg 34Kg 48Kg 58Kg
    Product Dimensions (mm) 410x580x415mm 510x680x515mm 510x780x615mm 610x880x715mm 660x930x865mm
