Lichen

Dry Bath

DB Series

dry-bath

Product Overview

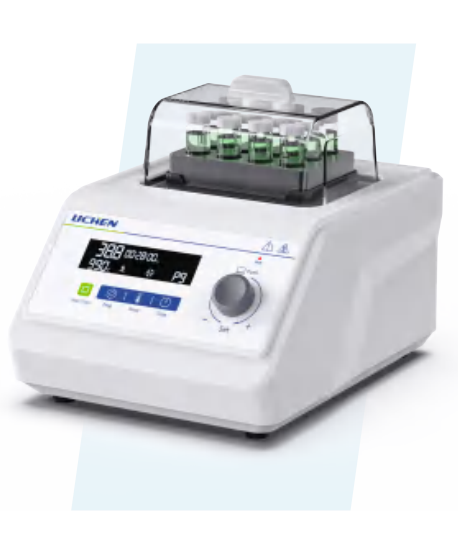

The DB Series Dry Bath is a semiconductor-based constant temperature instrument, ideal for small-volume, demanding incubation experiments. It supports various applications, including enzyme reactions, nucleic acid denaturation, and PCR, making it essential for life science, biochemistry, and environmental research.
Features
  • Parameter Memory: Retains settings after power loss and restart.
  • Auto Fault Detection: Audible alarm triggers upon completion or system error
  • Overheat Protection: Multi-vent cooling and built-in safeguards prevent overheating
  • Smart Calibration: Intelligent algorithm with temperature deviation correction reduces experimental error
  • Multi-Segment Programming: Supports programmable stages with independent on/off control and up to 99 cycles.
  • High-Efficiency Module: Magnesium-aluminum alloy construction enables rapid heating and cooling.
    •

    Product Parameters


    Model LC-DB-100H LC-DB-100HC
    Power Supply AC220V/50Hz AC110～ 240V/50～ 60Hz
    Power 560W 160W
    Optional Module 96*0.2mL / 54*0.5mL / 35*1.5mL / 35*2.0mL / 24*5.0mL / 12*15mL / 6*50mL
    Display Mode LCD display
    Display Content Multi-Segment mode, Temperature, Time
    Temp. Range RT+5 ～ 100℃ RT-25℃ ～ 100℃
    Temp. Accuracy ±0.5℃
    Heating Method PTC Ceramic Semiconductor
    Cooling Method Natural Convection + Fan Semiconductor + Fan
    Timing Range 1min～ 99h59min
    Program Control Function Multi-Segment Operation (1-9 segments)
    Net Weight (kg) 4.2Kg
    Product Dimensions (mm) 271x205x141mm
