Lichen

Chemical Resistant Vacuum Pump

VPD Series

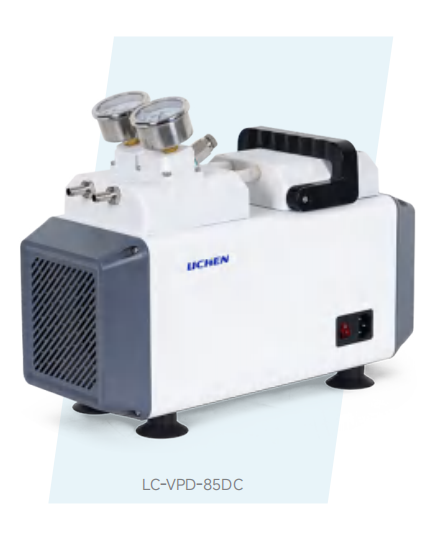

Chemical Resistant Vacuum Pump VPD Series

Product Overview

The VPD Series Chemical Resistant Vacuum Pump delivers oil-free, quiet, and efficient operation with a long service life. Its compact, lightweight design ensures stable vacuum and adjustable pressure, supporting 24-hour continuous operation. The pump requires minimal user-friendly maintenance, making it an essential tool for any laboratory.
Features
  • Equipped with vibration-damping feet for smoother operation and enhanced shock resistance.
  • Features thickened outer walls, oil-free quiet operation, adjustable pressure, and stable vacuum.
  • Powerful performance enables fast filtration, improves work efficiency, and saves time.
  • Includes an overheat protection device that automatically cuts off power when pump temperature reaches 130°C.
  • Utilizes friction-free diaphragm movement, generating less heat with no friction loss, extending service life.
  • Built-in automatic cooling and exhaust system ensures safe and stable 24-hour continuous operation.
  • Compact size, lightweight, easy to move, saves lab space, and simplifies maintenance.
  • Diaphragm uses corrosion-resistant material with PTFE coating; gas-contact parts feature Teflon coating for chemical resistance
    •

    Product Parameters


    Model LC-VPD-98C LC-VPD-85DC
    Power Supply AC 220V 50Hz
    Power (W) 160W
    Display Mode Negative Pressure Gauge x1 Negative Pressure Gauge x1; Positive Pressure x1
    Number of Pump Heads Negative Pressure x1 Negative Pressure x1; Positive Pressure x1
    Max.Vacuum Degree 0.098Mpa 0.085Mpa
    Positive Pressure / 0.18Mpa
    Speed Range 1450-1500rpm
    Pumping Speed 30L/min 42L/min
    Net Weight (kg) 11.2Kg
    Product Dimensions (mm) 400x165x306mm 400x165x295mm
