Chemical Resistant Vacuum Pump

VP Series

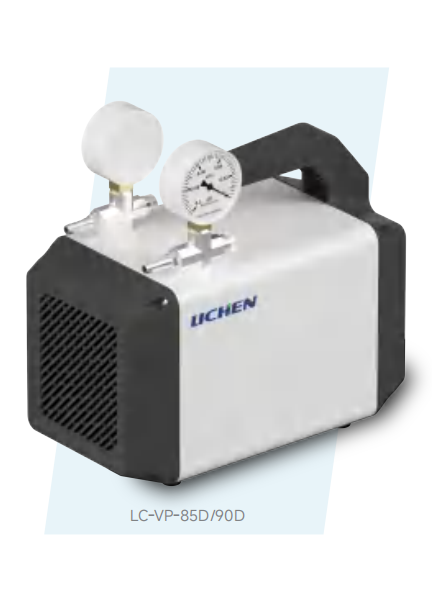

Chemical Resistant Vacuum Pump VP Series

Product Overview

The VP series Chemical Resistant Vacuum Pump deliver continuous oil-free operation with low noise, high efficiency, and extended service life. Engineered for gas handling in chemical, pharmaceutical, and petrochemical sectors, they excel in applications like vacuum distillation, vacuum concentration, and solid-phase extraction, serving as indispensable tools in laboratory environments.
Features
  • Rubber feet reduce vibration and ensure stable operation.
  • Perforated heat dissipation vents enhance cooling efficiency and extend lifespan.
  • Oil-free operation eliminates contamination, with simple, user-friendly maintenance.
  • Aluminum alloy housing with electrostatic spray coating for durability, anti-aging, and corrosion resistance.
  • AC asynchronous motor delivers long life, high efficiency, and reliable performance.
  • Built-in automatic cooling fan system ensures continuous long-term operation.
  • Single-gauge models include a muffler to reduce operational noise; dual-gauge models monitor both positive and negative pressure simultaneously, with dual pump heads to meet diverse air extraction and exhaust needs.
    •

    Product Parameters


    Model LC-VP-85 LC-VP-90 LC-VP-85D LC-VP-90D
    Power Supply AC 220V 50Hz
    Power 165W 245W 165W 245W
    Display Mode Pressure Gauge
    Gauge Min. Scale Negative: -0.002MPa Negative: -0.002MPa / Positive: 0.02MPa
    Max. Vacuum -0.085MPa -0.09MPa -0.085MPa -0.09MPa
    Flow Rate 30L/min 60L/min 30L/min 60L/min
    Number of Pump Heads 1 2
    Speed Range ≥ 1360rpm
    Positive Pressure / 20.3psi（0.14MPa） 26.8psi（0.185Mpa）
    Air Hose Connection φ8mm
    Noise Level ＜ 62db
    Net Weight (kg) 5Kg 6.2Kg 5.3Kg 6.5Kg
    Product Dimensions 290x160x280mm
