Touch Screen Viscometer

DVT Series

Touch Screen Viscometer DVT Series

Product Overview

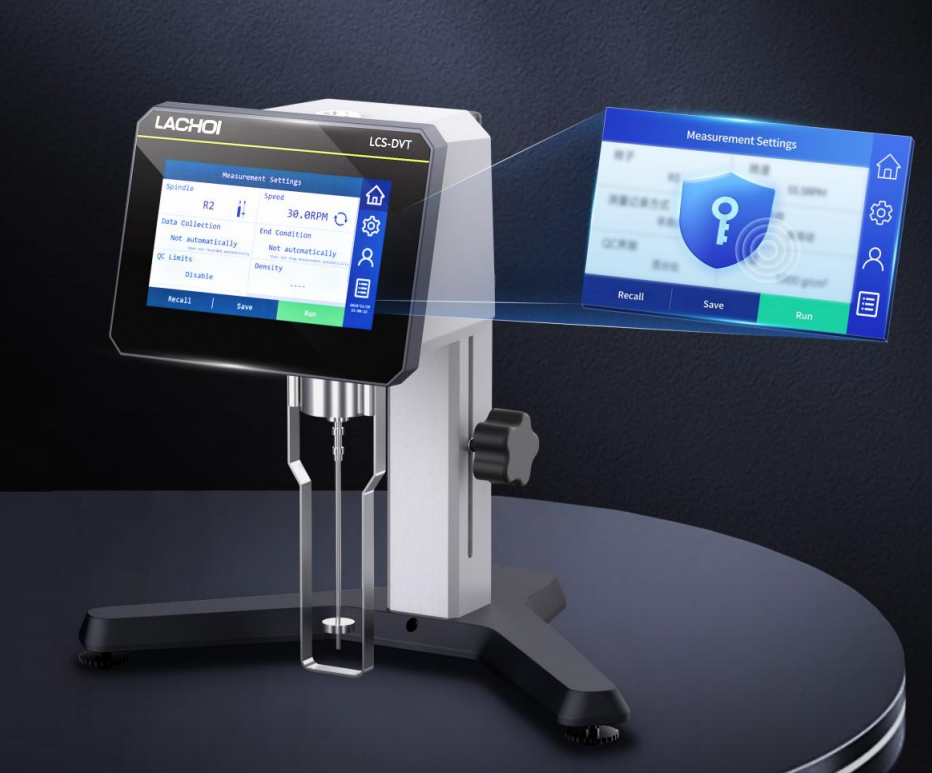

DVT series touch screen viscometer features a 7-inch color touchscreen that guides users through test setup and data collection for rapid viscosity measurement. It supports advanced functions including data averaging and QC limit alarms, with direct output to printers, computers, or USB drives.
Features
  • Data storage for up to 10,000 measurements.
  • Automatic unit conversion (viscosity/shear stress/density).
  • Configurable timing measurement; range: 6 - 3.2x10 ⁸ mPa·s.
  • Four language interface and optional theme colors (Chinese, English, Japanese, Korean).
  • High-precision stepper motor, vibration damping, low-noise, maintenance-free.
  • Stepless and stepped speed modes.
  • Temperature sensor interface for realtime sample monitoring.
  • Realtime viscositytemperaturetime curve display.
  • 7inch color touch screen for intuitive operation.
  • RS232 interface with printing and PC connectivity.
    •

    Product Parameters


    Model LCS-DVT-LV LCS-DVT-RV LCS-DVT-HA LCS-DVT-HB
    Power Supply AC110-240V 50-60Hz
    Display Mode Color touch screen
    Measuring Range (mPa·s) 6-6×10^6 40-4×10^7 80-8×10^7 320-3.2×10^8
    Viscosity Measurement Accuracy ±1% (Newtonian Fluid)
    Viscosity Measurement Repeatability ±0.5% (Newtonian Fluid)
    Spindle Specifications No.1-4 spindle No.R2-R7 spindle
    Spindle Specifications Optional No.0 spindle and small sample spindle
    Spindle Speed (rpm) 0.1-250
    Speed Control Stepless speed change/Fixed speed change
    Recommended Temp. Range (℃ ) 0-60
    Temp. Accuracy (℃ ) ±0.1
    Net Weight (kg) 6.6
    Product Dimensions (mm) 370×325×500
