Rotary Vane Vacuum Pump

VRT Series

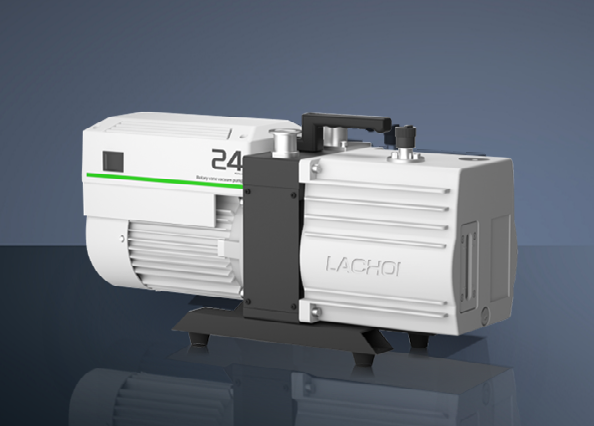

Rotary Vane Vacuum Pump VRT Series

Product Overview

The VRT Series Rotary Vane Vacuum Pump features an oil-sealed, two-stage design for simple construction and high reliability, capable of rapidly reaching high vacuum levels. As a fundamental vacuum solution, it utilizes rotating canes for efficient gas evacuation, delivering low noise operation and high ultimate vacuum performance.
Features
  • Variable-frequency motor for precise speed control and high energy efficiency.
  • Ductile iron construction ensuring structural stability and consistent vacuum.
  • Built-in anti-backflow valve to prevent oil contamination after shutdown.
  • Pressure force lubrication with wear-resistant rotor for quiet high-pressure operation.
  • Transparent oil window for real-time oil level monitoring.
  • Nickel plating anti-corrosion process for pump body components greatly reduces the chance of pump jamming.
  • Advanced exhaust and gas ballast valve to prevent oil emulsification.
  • Standard oil mist filter for trapping vapors and extending service life.
    •

    Product Parameters


    Model LCS-VRT-H8C LCS-VRT-H16C LCS-VRT-H24C LCS-VRT-H30C LCS-VRT-H40C LCS-VRT-H60C LCS-VRT-H90C
    Power Supply (V) AC 220/380 AC 380
    Power (W) 370 550 750 750 1100 1500 2200
    Ultimate Vacuum Gas Ballast Off Partial Pressure (Pa) ≤ 4x10-2
    Ultimate Vacuum Gas Ballast Off Total Pressure (Pa) ≤1
    Ultimate Vacuum Gas Ballast On Total Pressure (Pa) 6
    Pumping Speed (m3/h) 8 16 24 30 40 60 90
    Inlet Port Size KF-25 KF-40
    Outlet Port Size KF-25 KF-40
    Speed Range (rpm) 1440
    Oil Capacity (L) 1.4 1.8 1.9 2 4 5 6
    Net Weight (kg) 32 36 38 40 68 80 88
    Product Dimensions (mm) 520x175x285 540x175x285 564x175x285 584x175x285 660x234x350 720x234x350 830x280x415

    Accessories

    Oil Mist Filter

    Oil Mist Filter

    Product Overview

    As a key accessory, it efficiently separates and captures oil misy from the discharged gas, achieving oil-gas separation, improving exhaust cleanliness, and meeting energy-saving and environmental requirements.
    Features
  • Two interface sizes for different pump models.
  • Dual inlet/outlet filter elements for effective oil-gas separation.
  • The filter design is compact, lightweight, low-noise, easy-start design.
  • Built-in sealing ring prevents oil leakage.
    •

    Model MF (KF25) MF (KF40)
    Vacuum Connector Dimension KF25 KF40
    Product Dimensions (mm) 21x10.5x10.5 20x20x12
    Net Weight (kg) 0.6 0.7

    Inlet Filter

    Inlet Filter

    Product Overview

    Installed at the air intake to filter out dust, metal particles, and other impurities from the air, preventing contaminants from entering the pump interior, protecting precision components, and maintaining vacuum performance and operational stability.
    Features
  • Excellent corrosion, heat, pressure, and wear resistance; uniform pores ensure precise filtration accuracy.
  • Inlet filter with metal mesh pre-filter effectively blocks solid particles from entering the pump chamber.
  • High flow rate per unit area.
  • Built-in sealing ring prevents oil leakage.
  • Suitable for both low and high-temperature environments.
  • Consistent surface filtration performance for particles ranging from 2 to 200 μm.
    •

    Model IAF (KF25) IAF (KF40)
    Vacuum Connector Dimension KF25 KF40
    Product Dimensions (mm) 15x9x16 26x25x13
    Net Weight (kg) 1 3.6
