Lachoi

Overhead Stirrer

OS Series

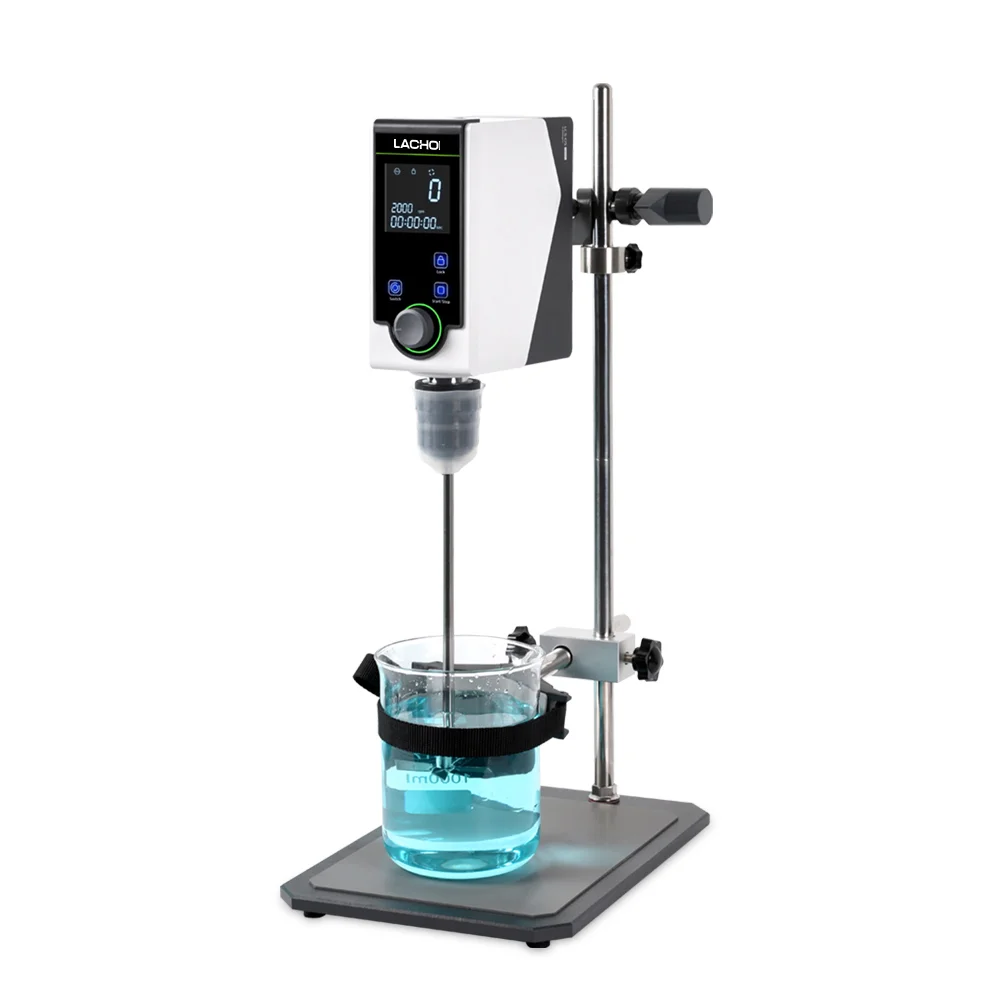

Overhead Stirrer OS Series

Product Overview

OS series overhead stirrer integrate innovate design and advanced technology to deliver high torque at low speeds with exceptional stability and concentricity, suitable for stirring fluids of various viscosities in laboratory settings.
Features
  • Tempered glass panel with LCD display.
  • Head locking mechanism for safe operation.
  • Non-slip thickened base.
  • Parameter memory with overload protection and sleep mode.
  • RS232 interface for remote monitoring and data recording.
  • Flexible woven beaker clamp for wide compatibility.
  • Microprocessor control with constant speed/torque output.
  • Optional stepless speed adjustment, timer, and reversible rotation.
    •

    Product Parameters


    Model LCS-OS-60N LCS-OS-80N LCS-OS-60N Pro LCS-OS-80N Pro
    Power Supply AC220V 50Hz
    Total Power (W) 170 270 170 270
    Motor Type DC brushless motor
    Display Mode LCD
    Time Range 1 ～ 99h59min
    Suggested Stirring Volume (H20) L 40 60 40 60
    Max Torque (N · cm) 60 80 60 80
    Suggested Max Stirring Viscosity (mPa · s) 50000 100000 50000 100000
    Speed Range 50 ～ 2000
    Speed Control Accuracy (rpm) ±3
    Chuck Clamping Diameter (mm) 0.5 ～ 10
    Bidirectional Rotation Function ✓
    Programming / / 6-stage 6-stage
    Anti Tilt Function / / ✓ ✓
    Net Weight (kg) 11.46 11.76 11.46 11.76
    Product Dimensions (mm) 320x220x600
