Lachoi

Ultra-Thin Magnetic Stirrer

MST Series

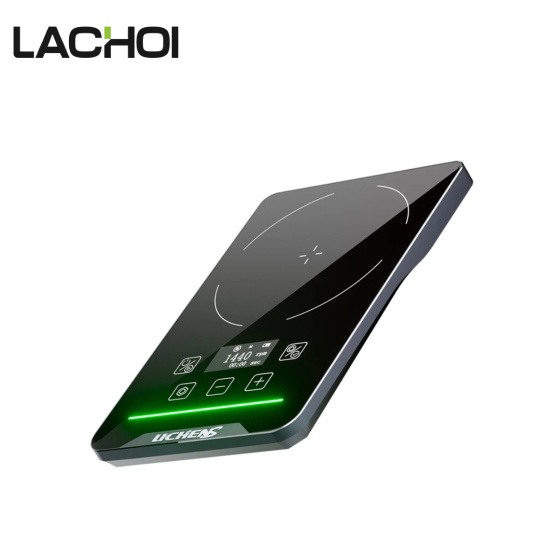

Magnetic Stirrer MST Series

Product Overview

MST series ultra-thin magnetic stirrer are designed for efficient mixing of low-viscosity liquids and solid-liquid mixtures. With precise speed control, they meet diverse experimental mixing requirements while featuring a space-saving slim profile.
Features
  • Supports bidirectional rotation function.
  • Powered by lithium batteries (3 hours runtime).
  • Real time display of speed, time, and battery level.
  • Sealed shell design for circuit protection.
  • Power-off memory & parameter memory function.
  • Intuitive LCD touchscreen operation.
    •

    Product Parameters


    Model LCS-MST-1P
    Power Supply AC110-240 DC5V 2A
    Frequency (Hz) 50/60
    Display Mode OLED display screen
    Display Content Speed, time, and battery display
    Ingress Protection Rating IP67
    Max. Stirring Volume (H2O) L 1
    Standard Stirring Bar Specification (mm) C-type Ø7x20 (>700rpm) + B-type Ø8x30 (<700rpm)
    Bidirectional Rotation Function ✓
    Operating Mode Inching+slide
    Motor Type Magnetic Coils
    Speed Range (rpm) 15 ～ 1500
    Timing Range 1 ～ 99min59s
    Bidirectional Rotation Timing Range (s) 20 ～ 99
    Hotplate Material Tempered glass
    Working Size (mm) Φ100
    Shell Material Aluminium alloy
    Net Weight (kg) 0.35
    Product Dimensions (mm) 169x109x13
