MSA Series
Product Overview

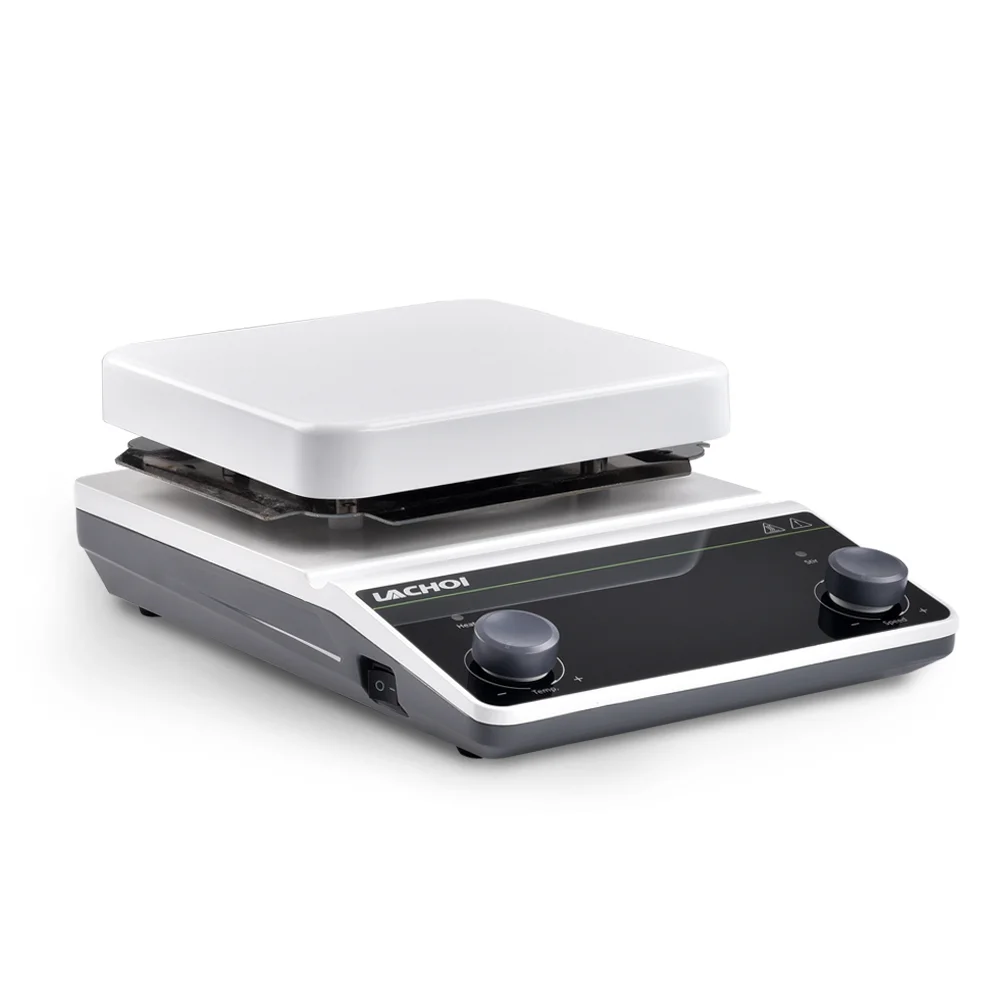

MSA series magnetic stirrer is a laboratory instrument designed for mixing low-viscosity liquids and solid-liquid mixtures, with optional heating capabilities. Its integrated temperature control system enables precise thermal regulation to maintain optimal reaction conditions.
Features
Product Parameters
| Model | LCS-MSA-D | LCS-MSA-H | LCS-MSA-HD | LCS-MSA-HD Ⅰ | LCS-MSA-HD Ⅱ | LCS-MSA-HDE |
| Power Supply | AC220V 50Hz | |||||
| Power (W) | 50 | 950 | 1050 | 800 | ||
| Display Mode | LCD | / | LCD | |||
| Motor Type | Brushless DC Motor | |||||
| Speed Range (rpm) | 50 ～ 2000 | |||||
| Speed Control Accuracy | ±10rpm | / | ±10rpm | ±2% | ||
| Bidirectional Rotation Function | ✓ | / | ✓ | ✓ | ✓ | / |
| Timing Range | 1 ～ 99h59min | 1 ～ 99h59min | ||||
| Temp. Control Range (℃) | / | RT ～ 350 | RT ～ 350 | RT ～ 380 | RT ～ 500 | RT ～ 330 (Working Plate); RT ～ 200 (Liquid); |
| Temp. Accuracy | / | / | Working Plate: ±1℃; Liquid: RT ～ 100℃, ±0.2℃; ≥ 100℃, ±1% |
Working Plate: ±3℃; | Working Plate: ±3℃; | Working Plate: ±3℃; |
| Max. Stirring Volume (H2O) L | 20 | 15 | ||||
| Hotplate Material | Cast aluminum + ceramic corrosion resistant coating | CNC-machined aluminum + ceramic corrosion resistant coating | CNC-machined aluminum + ceramic corrosion resistant coating | Graphite + Teflon anti-corrosion coating | Glass-ceramic | Cast aluminum + ceramic corrosion resistant coating |
| Working Dimensions (mm) | 170x170 | 173x173 | Φ150 | |||
| Stirring Bar Specification (mm) | φ10x40 | φ8x35 | ||||
| Programming | 6-Stage | / | 6-Stage | |||
| Data Interface | / | RS232 | ||||
| Net Weight (kg) | 2.58 | 3.16 | 3.2 | 3.7 | 2.5 | |
| Product Dimensions (mm) | 290x188x85 | 290x188x95 | 290x188x95 | 290x188x90 | 306x190x98 | 308x190x87 |
