Lachoi

Illuminated Incubator

PIC Series

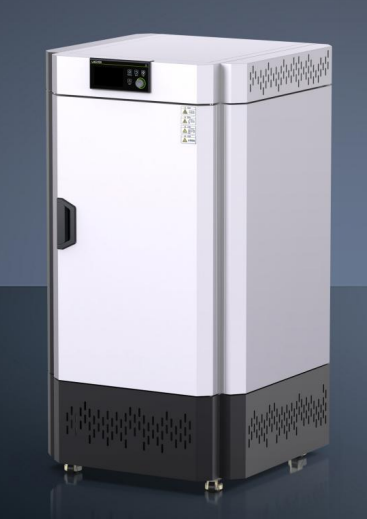

Illuminated Incubator PIC Series

Product Overview

PIC series illuminated incubator utilizes microprocessor-based programmable control to accurately set temperature and light intensity for simulating natural climates. It is widely used in plant cultivation, seed germination, microbial culture, herbal medicine testing, insect rearing, and industrial quality inspection for constant temperature and illumination experiments.
Features
  • PID temperature control with timer (min/hour switchable).
  • 5-inch LCD displays temperature, set light intensity, cycle, time, and segment.
  • 304 stainless steel chamber with removable shelves.
  • Programmable: 30 segments, 99 cycles (0-9999 min/h per segment).
  • Optional 2-side or 4-side illumination configurations.
  • Standard waterproof power socket (10A, 5-hole) compatible with small auxiliary instruments.
    •

    Product Parameters


    Model LCS-PIC-80 LCS-PIC-150 LCS-PIC-250 LCS-PIC-350 LCS-PIC-450 LCS-PIC-600 LCS-PIC-150T LCS-PIC-250T LCS-PIC-350T LCS-PIC-450T LCS-PIC-600T
    Power Supply AC220V 50Hz
    Power (W) 600 800 1000 1200 1400 2800 800 1000 1200 1400 2800
    Effective Volume (L) 80 150 250 350 450 600 150 250 350 450 600
    Temp. Control Range (℃) 0-70° C (without illumination); 10-70° C (with illumination)
    Temp. Fluctuation (℃) ±1.8℃ (37℃, Full Illumination) ±2.7℃ (37℃; RT: 24℃)
    Light Intensity 0-10000Lux 0-18000Lux
    Timing Range (min/h) 0~9999
    Net Weight (kg) 80 106.5 132 152.5 170.5 204 116.5 142 162 195 255
    Product Dimensions (mm) 660x640x1165 675x740x1410 775x790x1560 855x840x1660 955x840x1760 955x1040x1760 665x810x1415 765x860x1565 845x910x1665 945x910x1765 945x1110x1765
