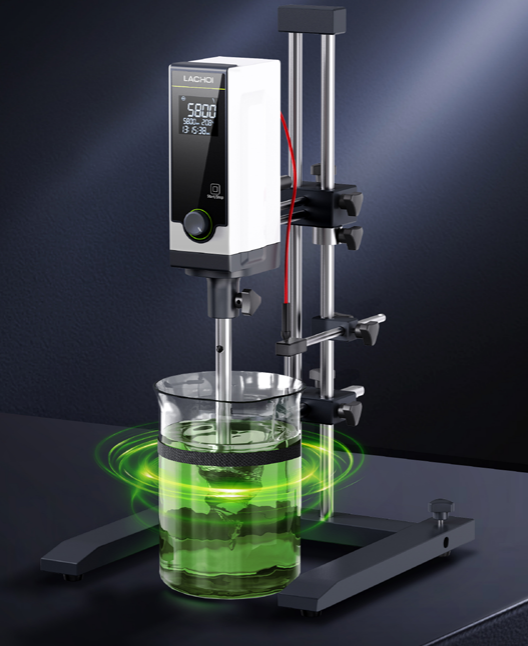

HET Series
Product Overview
HET series high-speed homogenizer incorporates advanced manufacturing technology. Driven by a high-speed brushless motor, its dispersing tool efficiently shears, disperses, and emulsifies samples, meeting demanding application needs in biopharmaceuticals, dairy homogenization, and other critical experimental processes.
Features
Product Parameters
| Model | LCS-HET-25DT |
| Power Supply | AC220V 50Hz |
| Total Power (W) | 1050 |
| Speed Range | 5000 ～ 26000 |
| Timing Range | 1 ～ 99h59min |
| Suggested Stirring Volume (H20) ml | φ25 : 7000 |
| Maximum Processing Viscosity (mPa·s) | φ25 : 3500 |
| Dispersing Tool Specification (mm) | φ25x216 |
| Dispersing Depth of Dispersing Tool (mm) | 62 ～ 147 |
| Dispersing Tool Material | SUS316L |
| Temp. Measurement Range (°C) | -10 ～ 200 |
| Net Weight (kg) | 10.5 |
| Product Dimensions (mm) | 360x380x638 |
Accessories

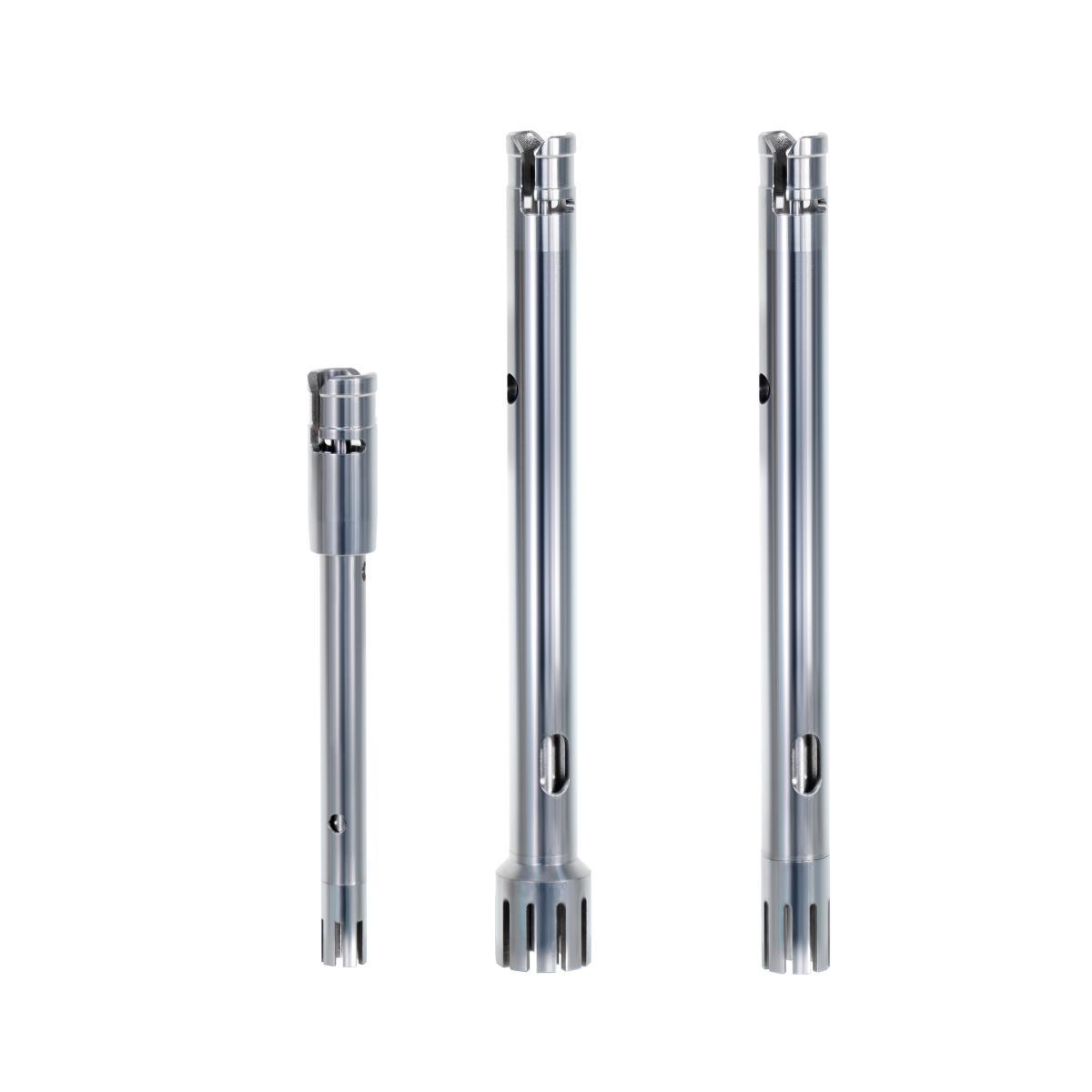

Homogenizer Dispersing Tool
Product Overview
The homogenizer dispersing tool achieves efficient dispersion and homogenization through its high-speed rotor-stator structure, which delivers intense shear forces and performs tens of thousands of cutting and mixing actions per minute. Equipped with three types of 316 stainless steel corrosion-resistant dispersing tools, to suit various experimental needs, all designed for easy disassembly and cleaning. It is strictly prohibited to idle during use, the sample liquid level must cover the lower holes of the work head without exceeding the upper holes.
| Dispersing Tool Model | Φ12 | Φ18 | Φ25 |
| Dispersing Tool Specification (mm) | φ12x200 | φ18x216 | φ25x216 |
| Speed Range (rpm) | 9000 ～ 26000 | 7000 ～ 26000 | 5000 ～ 26000 |
| Maximum Processing Viscosity (mPa·s) | 500 | 2000 | 3500 |
| Stator Diameter (mm) | Φ12 | φ18 | φ25 |
| Dispersing Tool Material | 316 Stainless Steel | ||
| Bearing Material | PTFE | ||
| Immersion Depth of Dispersing Tool (mm) | 40 ～ 90 | 62 ～ 147 | |
