Lachoi

Vacuum Drying Oven

VD Series

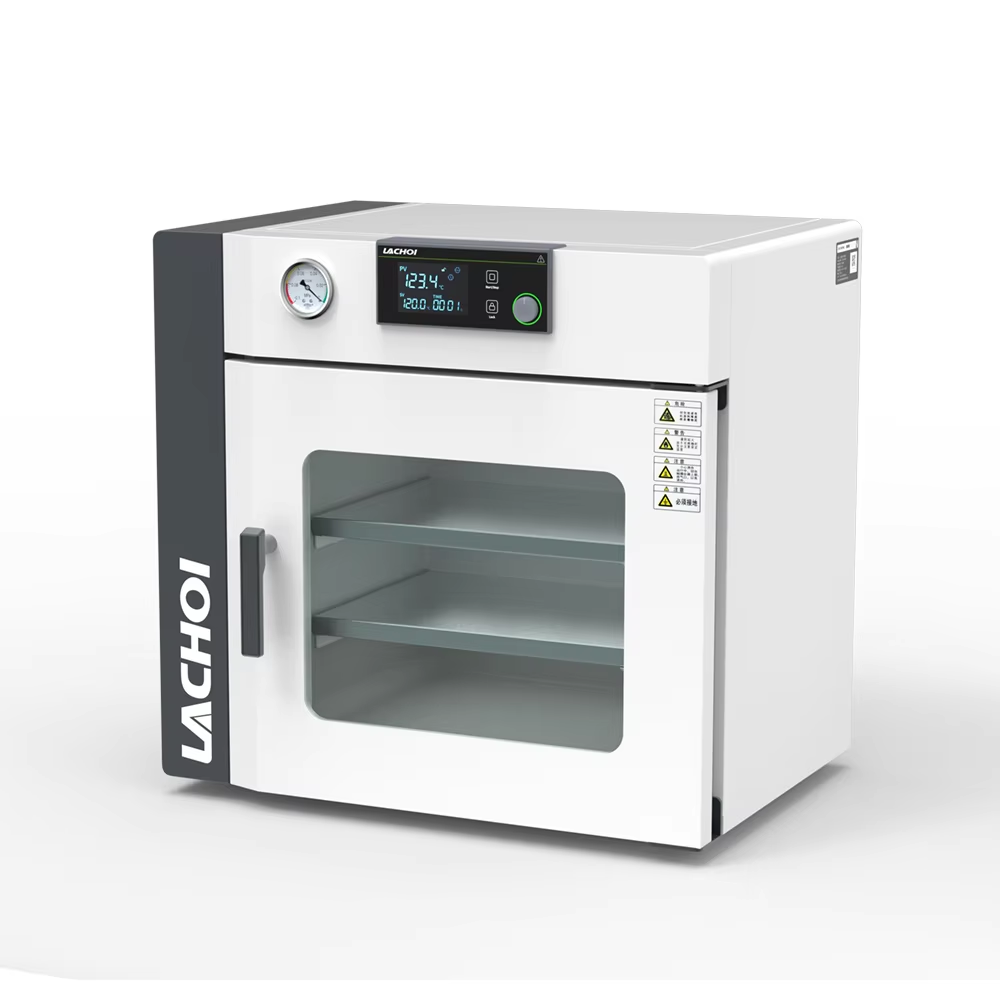

Drying Oven VD Series

Product Overview

VD series vacuum drying oven enables rapid drying and dry heat sterilization of heat-sensitive, decomposable, and oxidizable substances under vacuum or inert gas conditions, suitable for efficient processing of samples with complex compostiions.
Features
  • 304 stainless steel chamber : corrosion & high-temperature resistant.
  • 2 aluminum shelves (Multi-layer customization available) : excellent heat condition.
  • Tempered double-layer glass door : clear visibility.
  • Adjustable door with silicone seal : vacuum & inert gas compatible.
  • Vertical design, top-mounted controls : user-friendly operation.
  • PID control, LCD display, timer & over-temperature protection.
  • Electrostatic-coated steel : durable and corrosion-resistant.
    •

    Product Parameters


    Model LCS-AOV-20 LCS-AOV-50 LCS-AOV-90 LCS-AOV-210
    Power Supply AC220V/50Hz
    Total Power (W) 600 1000 1800 3000
    Effective Volume (L) 22 52 91 214
    Display Mode LCD
    Vacuum Degree (Pa) 133
    Temp. Control Range (°C) RT + 10 ～ 280
    Temp. Accuracy (°C) ±1
    Timing Range (min) 0～9999
    Working Material SUS304
    Working Size (mm) 300x300x275 370x415x345 450x450x450 600x550x650
    Standard Number of Shelves 2 3
    Bearing of Shelf (kg) 15
    Net Weight (kg) 46 63 91 207
    Product Dimensions (mm) 490x580x590 535x682x660 635x750x790 830x930x1115
