Drying Oven

AOV Series

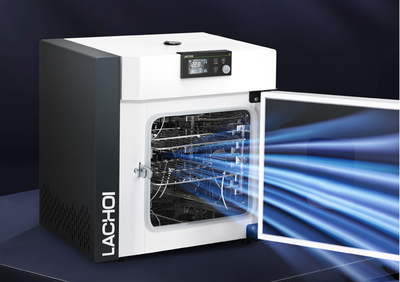

Drying Oven AOV Series

Product Overview

AOV series drying oven features a modern design and advanced technology, offering precise temperature control and stable performance for easy maintenance and operation, Ideal for industrial, research, and medical laboratories, it supports drying, baking, wax melting, and other heat treatment processes.
Features
  • Reinforced stainless steel air outlet — corrosion-resistant, aesthetically pleasing.
  • High-temperature silicone rubber seal — durable and easily replaceable.
  • PID temperature control with clear LCD display.
  • 304 stainless steel chamber with rounded corners and removable shelves.
  • Double-layer large glass window for clear visibility.
  • Electrostatic spray-coated cold-rolled steel housing — anti-corrosion and aging-resistant.
  • Includes timing, over-temperature alarm, and self-tuning functions.
  • Embedded control panel with intuitive display and status indication.
    •

    Product Parameters


    Model LCS-AOV-20 LCS-AOV-40 LCS-AOV-70 LCS-AOV-120 LCS-AOV-210
    Power Supply AC220V/50Hz
    Total Power (W) 800 1300 1500 2000 3000
    Effective Volume (L) 20 42 70 136 210
    Display Mode LCD
    Temp. Control Range (°C) RT+10～300
    Temp. Accuracy (°C) ±1
    Temperature Uniformity ±2%
    Air Forcing Function ✓
    Timing Range (min/h) 0～9999
    Working Size (mm) 260x280x280 350x350x350 350x450x450 450x550x550 500x600x700
    Standard Number of Shelves 2
    Bearing of Shelf (kg) 15
    Max. Number of Shelves 4 6 8 10
    Net Weight (kg) 33 50 59.5 80 97.5
    Product Dimensions (mm) 460x565x580 540x635x680 545x735x775 645x835x880 690x885x1030
