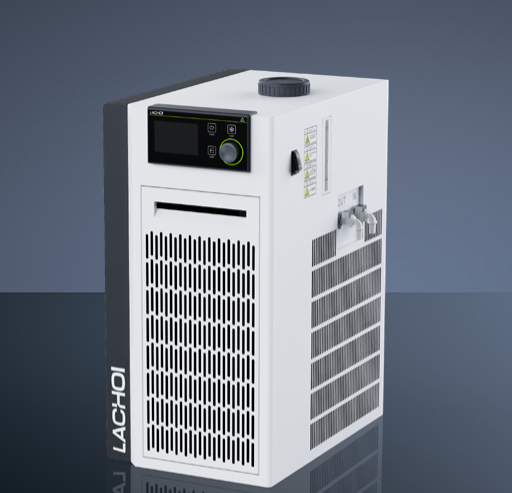

Circulating Chiller RC Series

Product Overview

RC series circulating chiller offers 400W cooling power and reaches -20\u2103, ideal for rotary evaporator and reflux condensers. Using eco-friendly R404A refrigerant and a 4L stainless steel tank, it ensures corrosion-resistant performance in a space-saving design for efficient lab user.
Features
  • SUS304 stainless steel inner tank, corrosion-resistant and durable.
  • Three built-in axial fans for high-efficiency heat dissipation.
  • Sealed imported compressor - cools to -20°C within 30 minutes.
  • Multiple safety protection - overheat, overcurrent, and overtemperature alarms with automatic power cutoff.
  • LCD screen - clear display of all operating parameter.
  • Constant temperature timing - starts timing automatically when set temperature is reached.
  • Liquid level observation window - real-time monitoring to prevent dry running.
  • Low noise and vibration - ideal for noise-sensitive environments.
    •

    Product Parameters


    Model LCS-RC-4/10 LCS-RC-4/20
    Power Supply AC220V/50Hz
    Power (W) 300
    Display Mode LCD
    Volume (L) 4
    Rated Flow (L/min) 8
    Maximum Head (m) 2.7
    Maximum Cooling Capacity (W) 974
    Temp. Control Range (℃) RT ～ -10 RT ～ -20
    Temperature Fluctuation 3 (≥ 0℃)/4 (< 0℃)
    Inner Tank Dimension (mm) 200x143x154
    Inner Material SUS304
    Net Weight (kg) 33.5
    Product Dimensions (mm) 425x272x548
