Lachoi

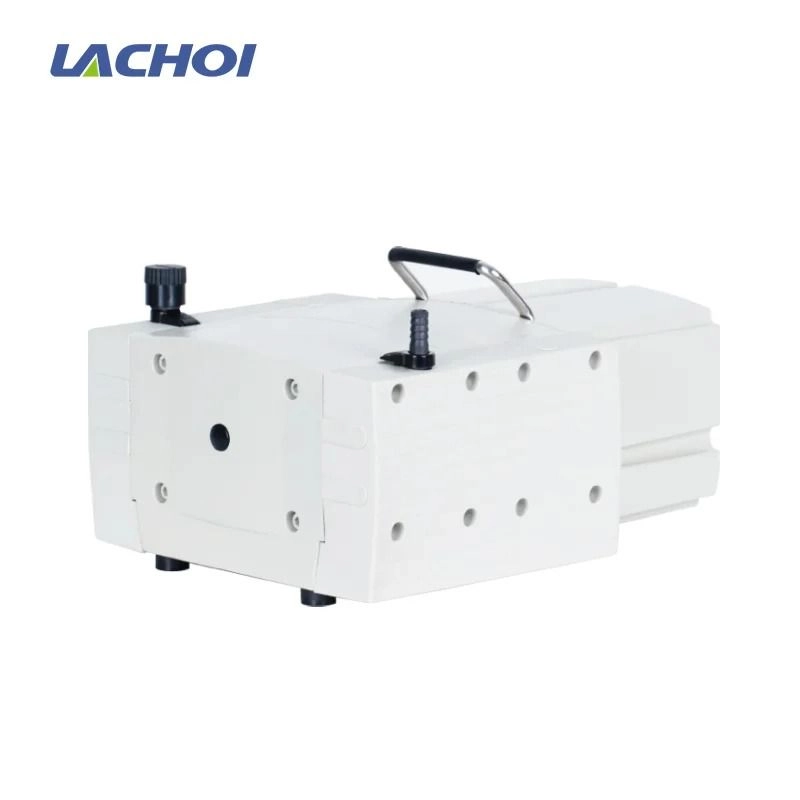

Chemical Resistant Vacuum Pump

VPH Series

Chemical Resistant Vacumm Pump

Product Overview

VPH series chemical vacuum pump is a reciprocating positive displacement pump that uses a diaphragm\' cyclic motion to vary chamber volume at the inlet by drawing in gas during and expansion and expelling it during compression.
Features
  • Hard-anodized housing : wear & corrosion resistant.
  • PM variable-speed motor : efficient, low-noise, wide voltage.
  • Compact design, powerful suction.
  • PTFE diaphragm & anti-corrosion construction.
  • High vacuum (up to 1mbar) with imported seals.
  • Auto cooling & damping for continuous operation.
  • Potted control board : durable protection.
    •

    Product Parameters


    Model LCS-VPH-2C LCS-VPH-4C LCS-VPH-2DC LCS-VPH-2PC
    Power Supply (V) AC110-240V 50/60Hz
    Power (W) 180 360
    Pumping Speed (m3/h) 2 4 2
    Number of Pump Heads Negative pressure port x1 Negative pressure port x2 Negative pressure port x1
    Diaphragm Material PTFE
    Ultimate Vacuum Degree 8/0.0992mbar/MPa 2/0.0998mbar/MPa 8/0.0992mbar/MPa 1/0.0999mbar/MPa
    Speed Range (rpm) Rated 1400
    Net Weight (kg) 8 10
    Product Dimensions (mm) 245x252x185 335x252x185
